Curving Elbow Stone Coated Roof Tile Machine Functional Blue

Curving Elbow Roll Forming Machine Functional For Downspout Elbow

Specifications

The downpipe elbow machine is the complementary equipment for downpipe machine, curving machine can make curve for down pipe to meet the requirement of practical engineering projects.

Curving speed: 20m/min

Main motor power: 2.2KW

Functional curving and seaming

Dimension: about: 1300x650x1500mm

Curving degree: Max. 90 degree

Main Components

Decoiler ---------------------------------------------- 1 Unit

Feeding guide ---------------------------------------- 1 Unit

main roll forming machine ---------------------------- 1 Unit

Hydraulic cutting device ------------------------------ 1 Unit

Hydraulic Station ------------------------------------- 1 Unit

PLC computer control -------------------------------- 1 Unit

Output table ----------------------------------------- 1 Unit

Elbow machine --------------------------------------- 1 Unit

Working Flow

 Decoiler--> Coil sheet guiding and feeding --> Roll forming machine with safty guard--> Tighten Device -> Cut to length --> Out-put Table --> Curving machine

Our Advantages

High Quality

Reliable

Durable

Reasonable Price

Good after Service

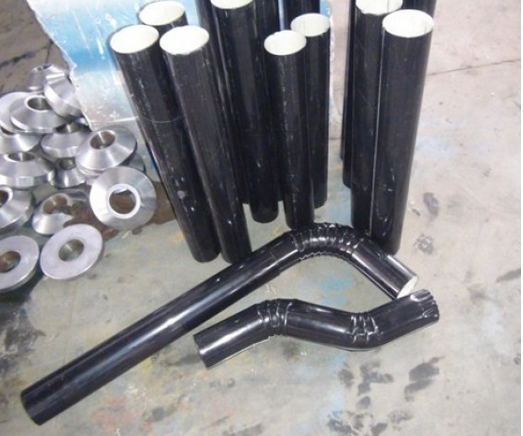

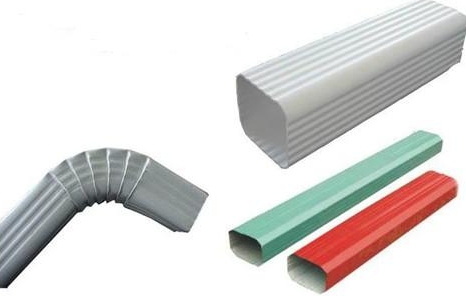

Pictures

elbow forming machine

cnc pipe bending machine
