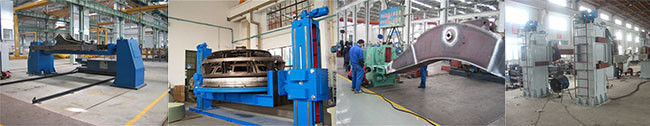

Head and Tail Tube Welding Positioner Power Turningtable Fixed on the Earth Idler Table May Move on the Track
Description
1. Head and Tail stock welding positioners through the two ends of the long work piece clamping working.
2. It can be adopted by electric welding Rotary achieve the desired location.
3. Head Stock welding positioner can overturn the work piece 360°.
4. The clamps can be designed according to your work piece.
5. PLC control to display the specification is available.
6. Voltage is 380V 50Hz 3P , or according to your request resetting.
Detail Parameters
| Model | TWB-05 | TWB-20 | TWB-30 | TWB-50 |
| Max Capacity | 500 kg | 2T | 3T | 5T |
| Table Diameter (mm) | 1000 | 1500 | 2000 | 2200 |
| Turning Speed (mm/min) | 0.09-0.9 | 0.05-0.5 |
| Lifting stroke (mm) | According to your request. (1200/1500) |
| Speed Adjust / Control Way | Frequency stepless speed adjust / Wireless Control |
| Option : | Light-duty with larger table diameter is available. |
Marks
1. If your work piece is pipe, please advise us the pipe diameter for the welding chuck model.
2. If your work piece is too long or height , please advise us to adjust the table center height .
3. If you want the clamps for your special work piece , then please advise us the details drawings.
Applications
1. Pipe to pipe (or Elbow or Flange);
2. Shaft, dish, cylinder, etc welding;
3. Framework of car, digger arm, loading machine, digger machine;
4. We also have the columns lifting model for reference. (video available)
Workpiece welding way
1. We have 3 jaws or 4 jaws chucks for chosen.
2. Special clamps are available,but we have to design according to your work piece detail drawings.
3. Bolt fixed the work piece on the turning table then weld with the automatic welding guns.
4. Using together with the auto welding robot.
5. Just advise me yours requestion for detail proposal.
After sale service
1. All our equipments have passed CE test and get the CE certificates.
2. For Middest East customers,like Sandi Arabia. We also can supply you the CO and Original Invoice.
3. Fully installed before package and delivery, so its easy for your to installation at your work shop.
4. Door to door installation service is also available if customer needed.
5. We provide 12month guaranty period for the whole machine quality.
JUST CONTACT US FOR DETAIL QUOTATION.
